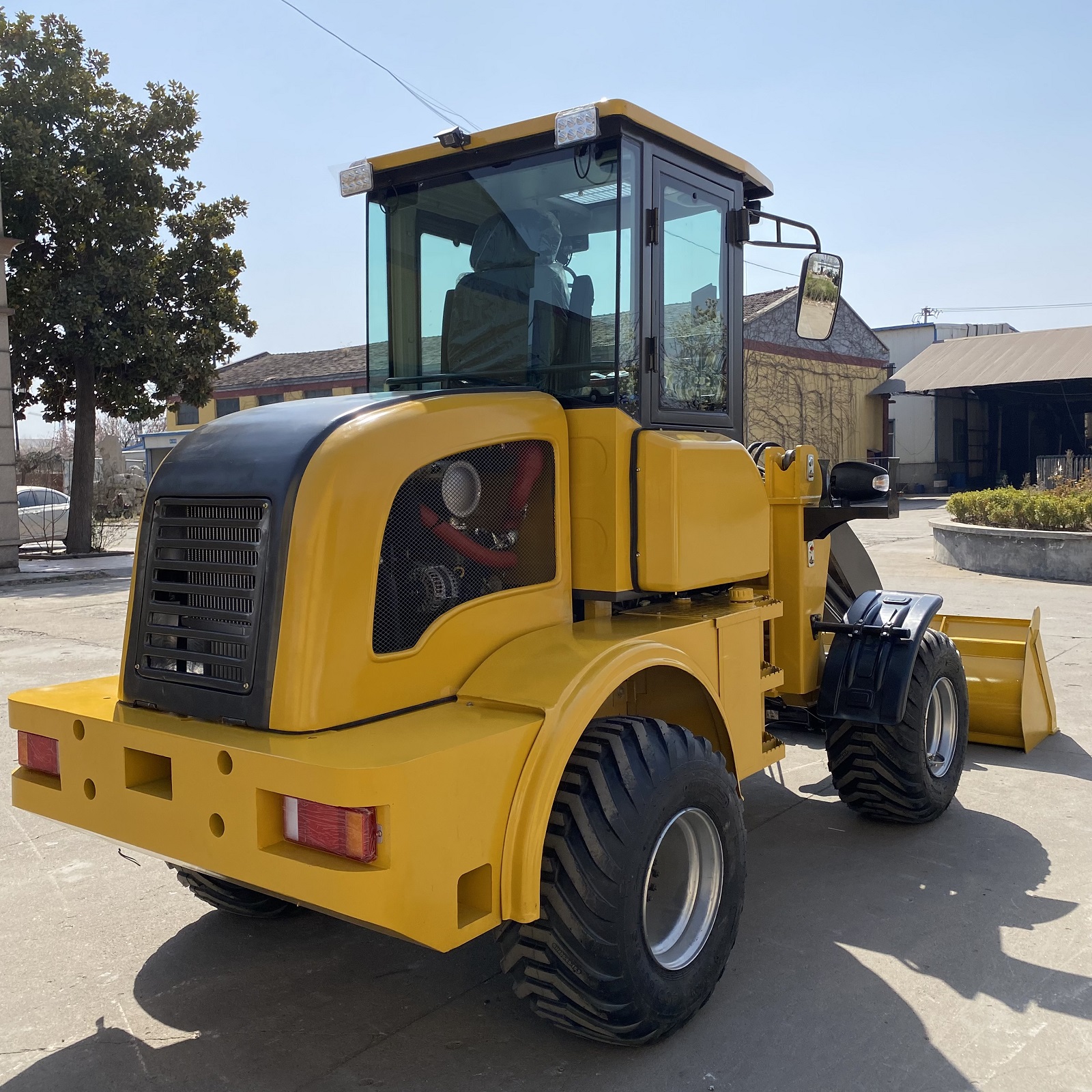

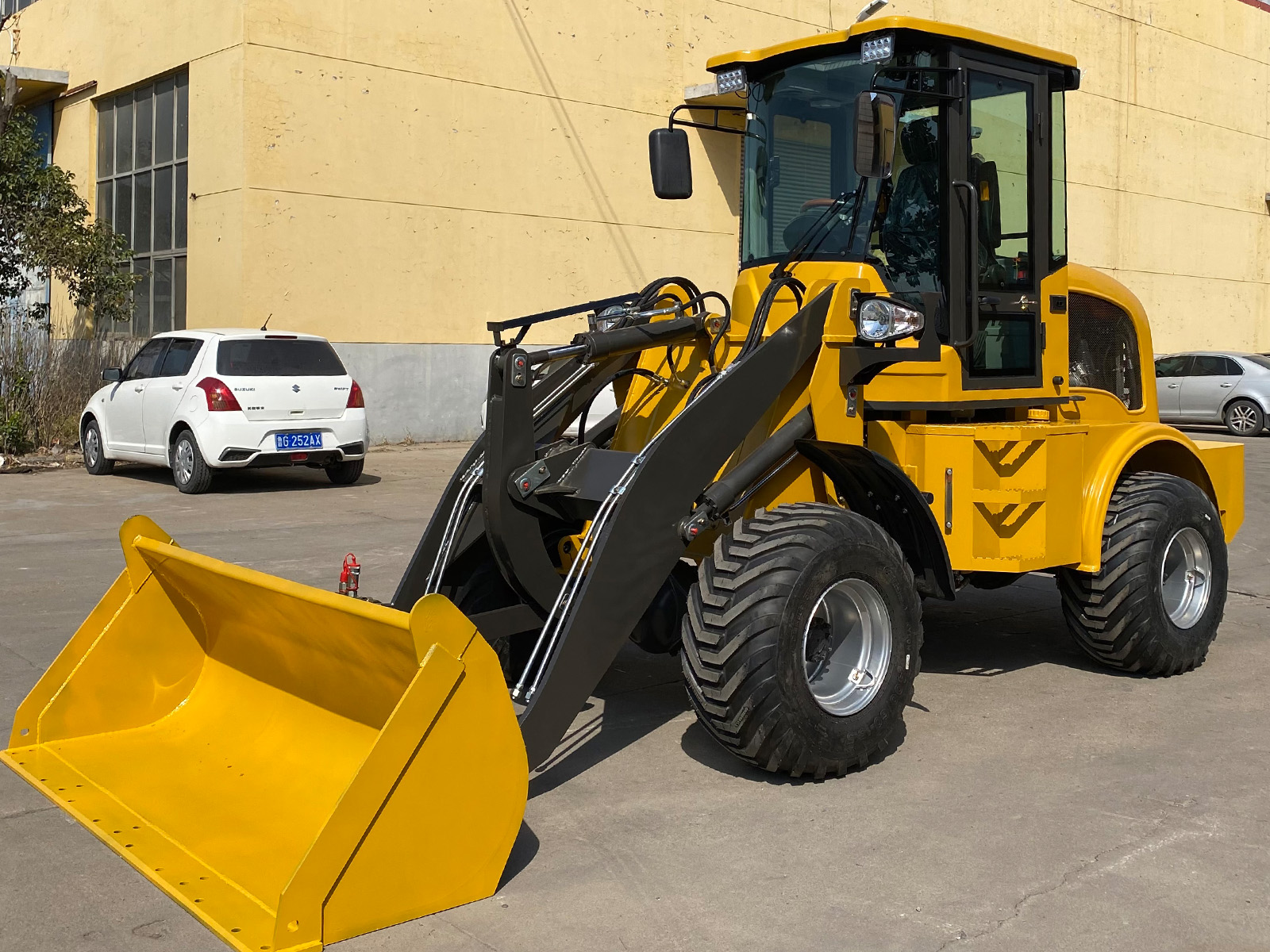

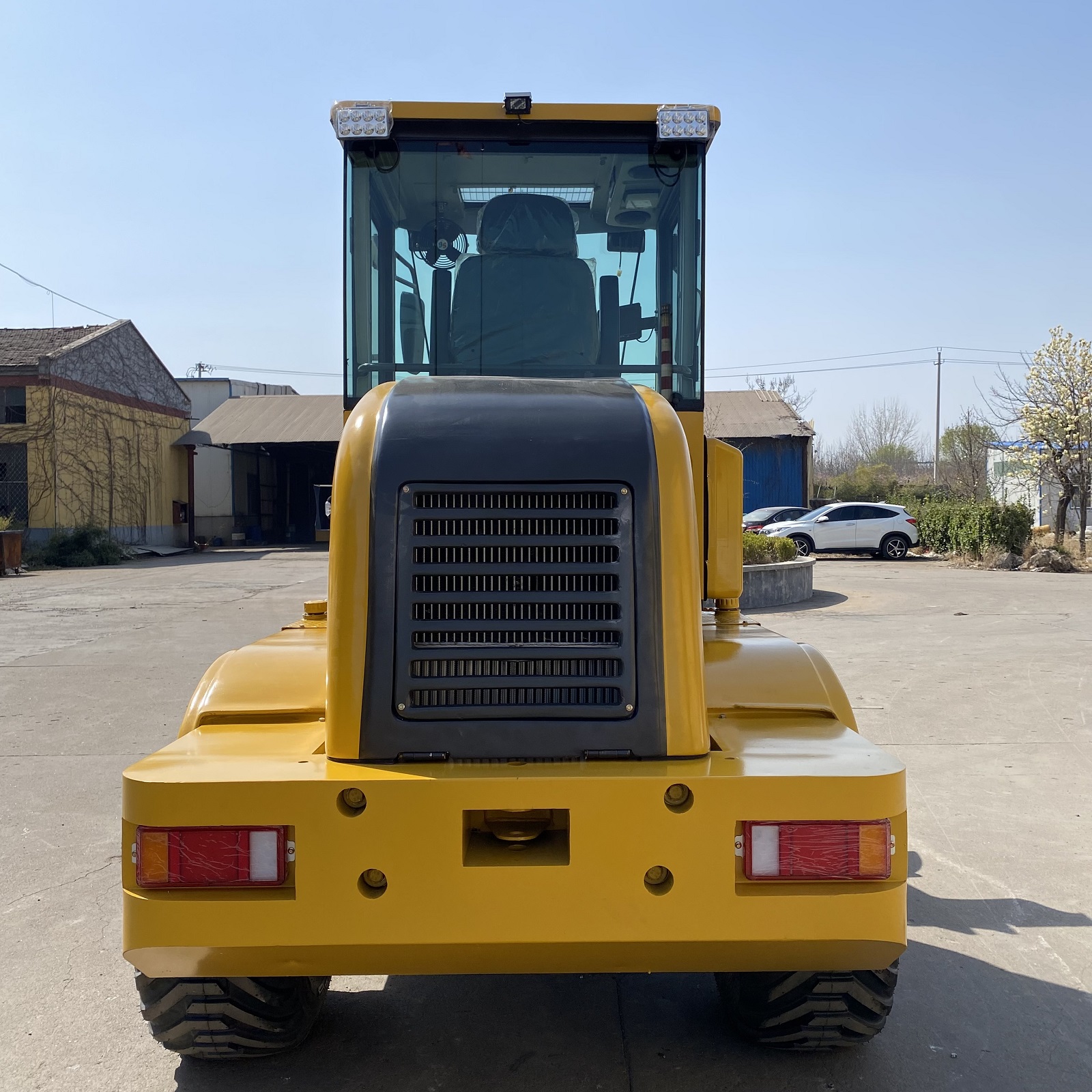

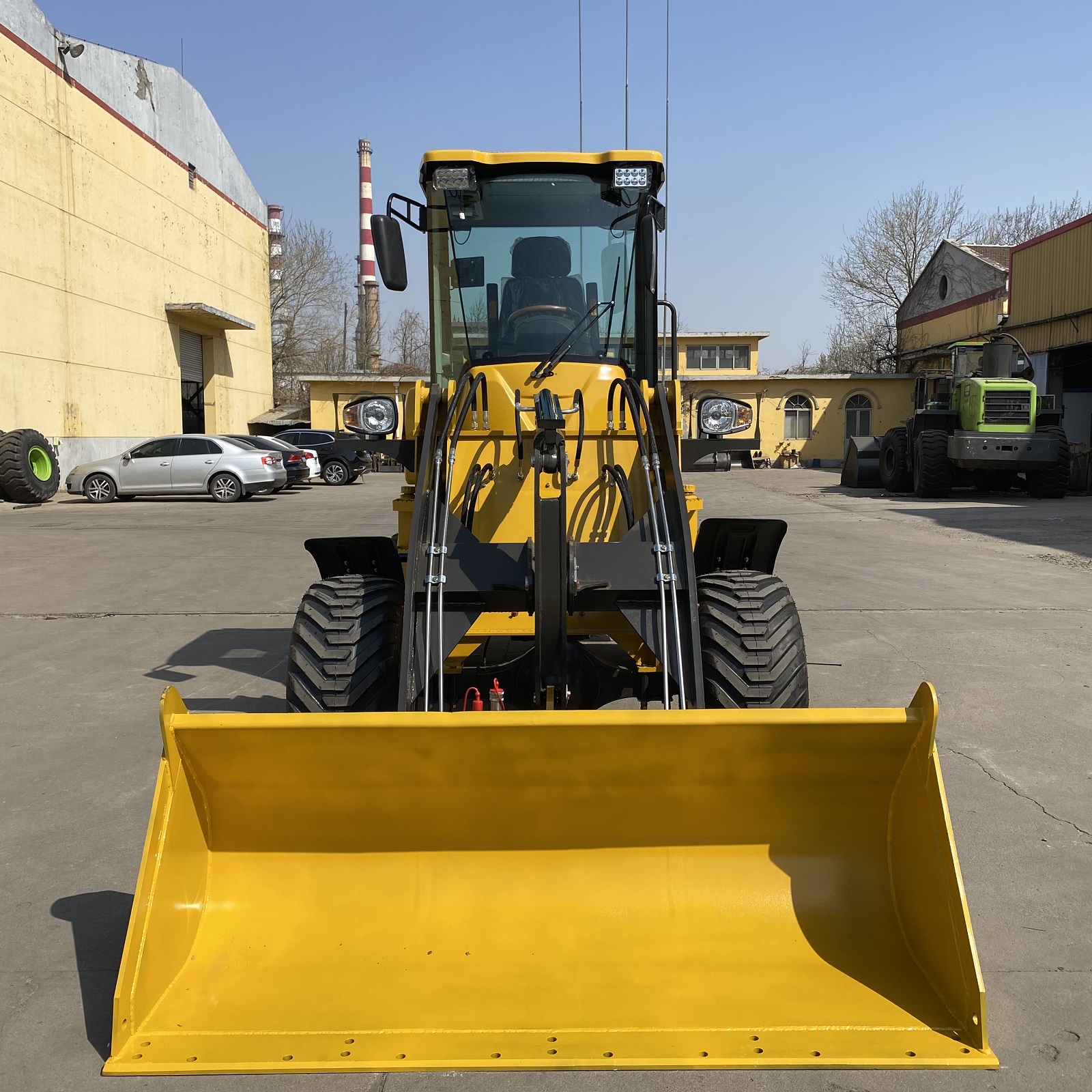

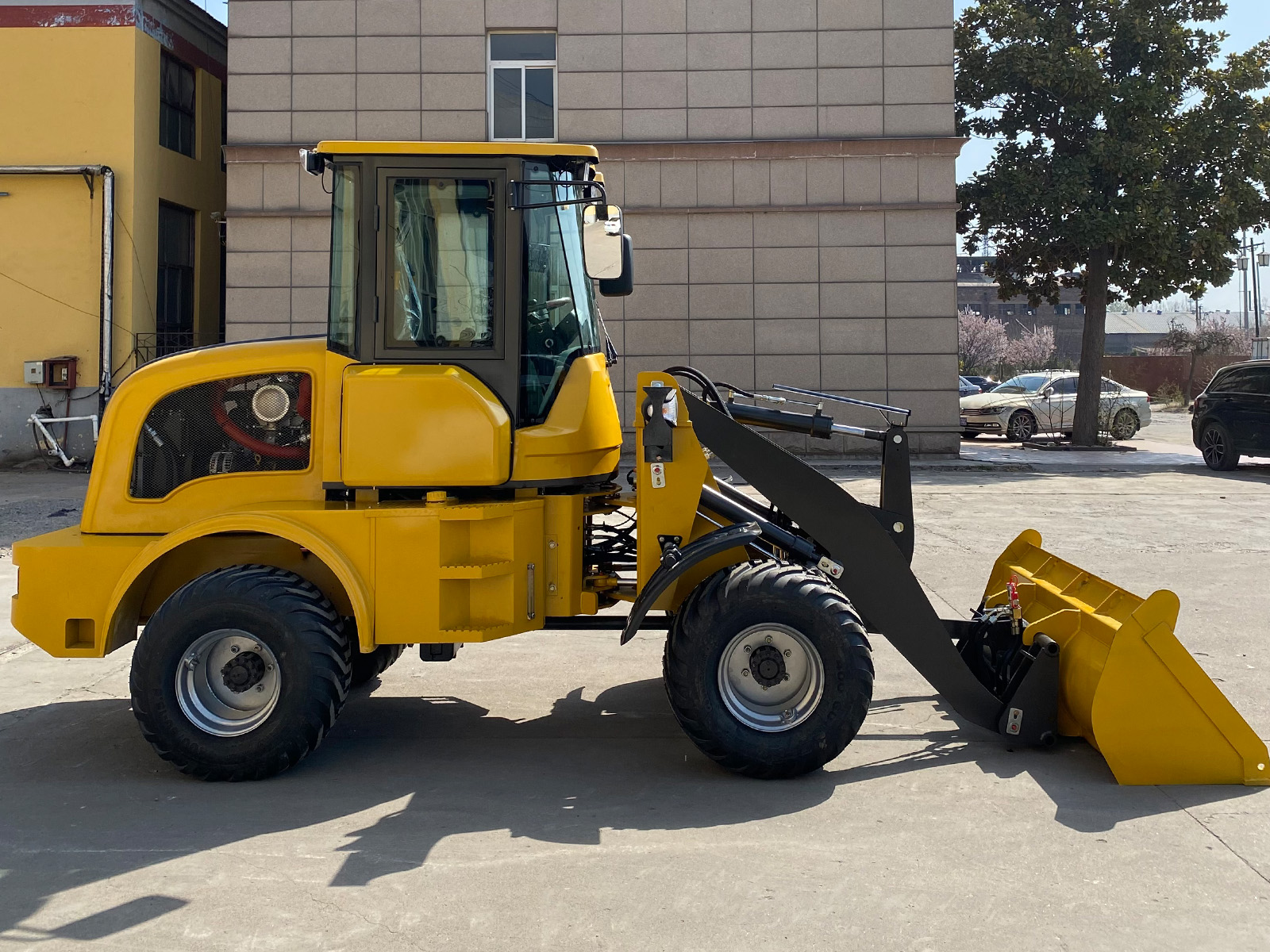

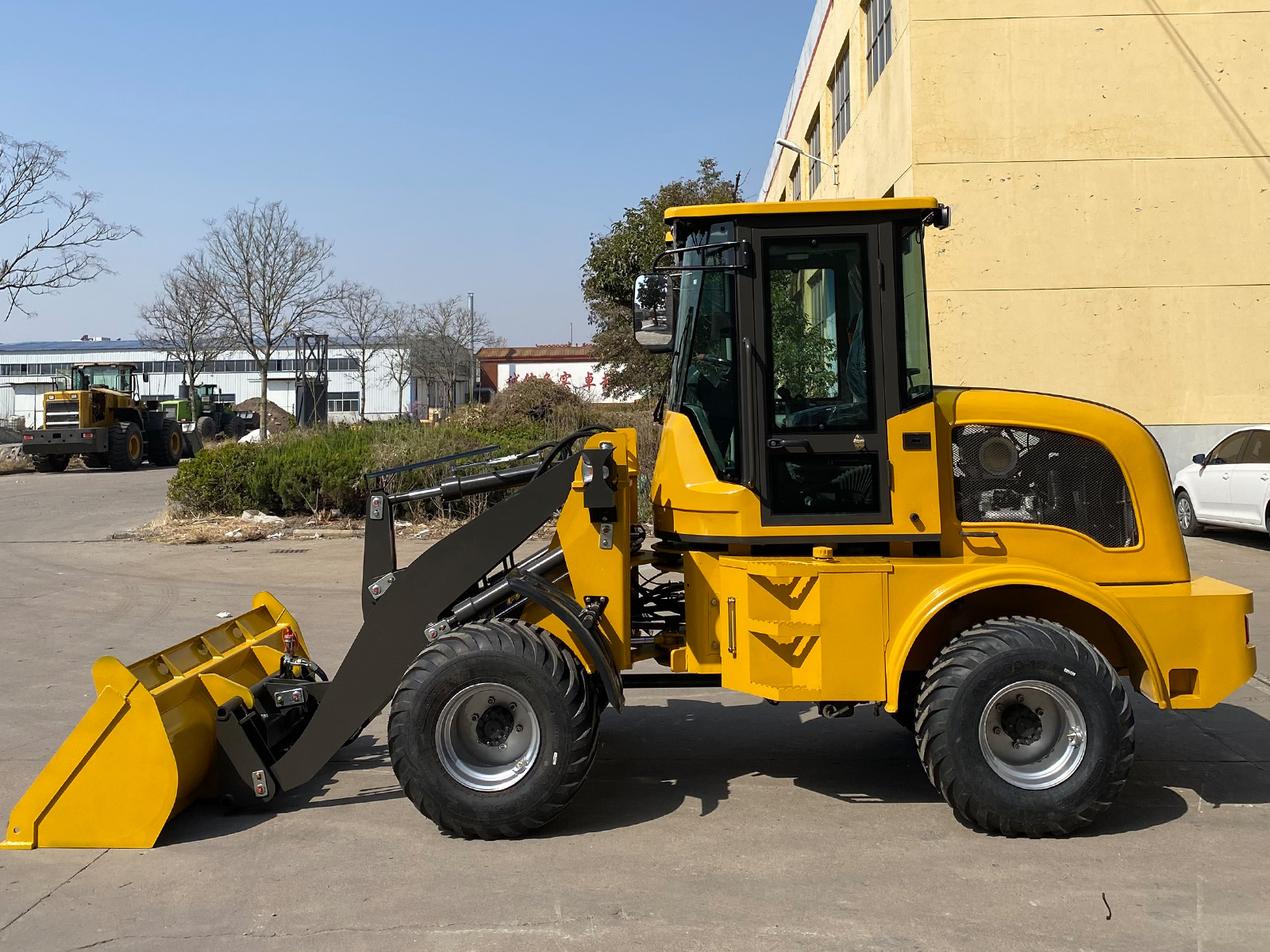

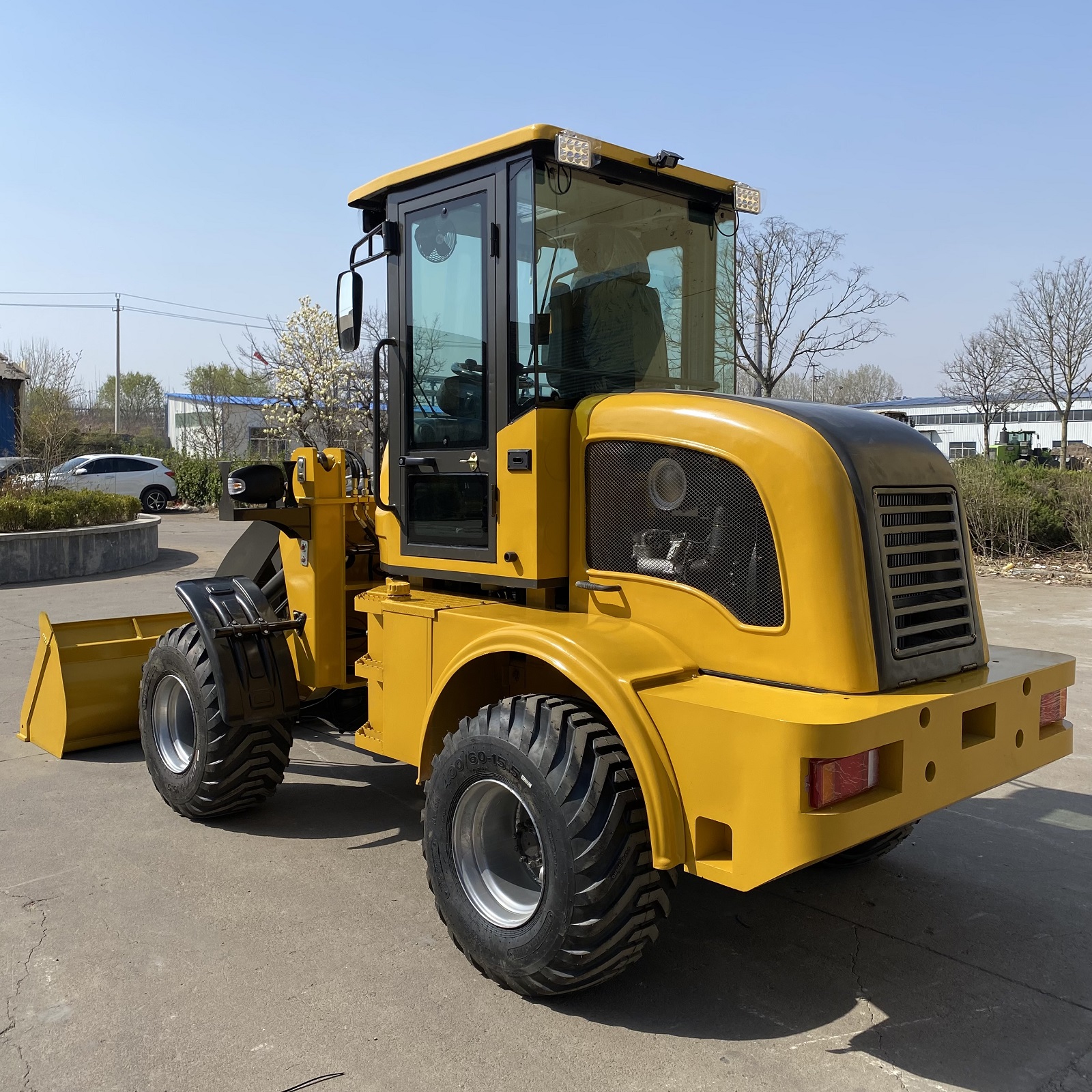

Huachy ZL20C is a 1.2 ton European type small wheel loader, bucket capacity 0.65 m³, bucket width 1800mm,  rated loading capacity 1200kg,  Machine operating weight is 3700 KG. ZL20C uses China popular engines on wheel loaders: Yunnei YN27, 42kw, a powerful diesel engine suitable for small wheel loader. Euro V emission engine is available. ZL20C Max. dumping height 3270mm. With 47KN Breaking Force,  ZL20C is a perfect model for small projects like: road building, coal mine works, urban construction, stone material factory, agricultural engineering works..etc.  ZL20C is a very popular European type wheel loader, welcome to consult for more information.

HUACHY ZL20C small wheel loader has many advantages:

1.Using powerful direct injection diesel engine, with easy startup and low oil consumption function.

2.Special drive axle used, with strong ability.

3.Using articulated structure Chassis, making ZL20C with a small turning radius,  the flexible turning applies to the works in narrow space.

4.Using a simple but mature structure, good performance and reliable, the hydraulic joysticks is very convenient for operation.

5.Widely applying to the construction of agricultural works and small-medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.

Main Features:

1.Front/Rear Axle

Planetary transmission is equipped with a compact structure and big torque.

Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.

2.Cabin

With new steel frame, the cab features wider view field, reliable safety and low noise.

Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.

Noise-absorbing, thermal insulation, and high class decoration materials are used for internal decoration.

The low vibration suspending seat is designed specially for the operators and improves human feeling.

The air conditioner is optional.

3.Humper

Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.

4.Welding Structure

New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and stability.

5.Hydraulic System

The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.

The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.

All the hydraulic parts are well-known brands in China, with perfect and reliable performance.

6.Wide Thread Steel Radial Tyre

Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big adhesive to ground, and nice traction.

Widely applied for mining, earth-moving, loading and digging operation.

7.Electric System

The cable and jacket are made of anti-flaming material.

High-grade battery and electric parts are applied to ensure more reliable and stable system.
